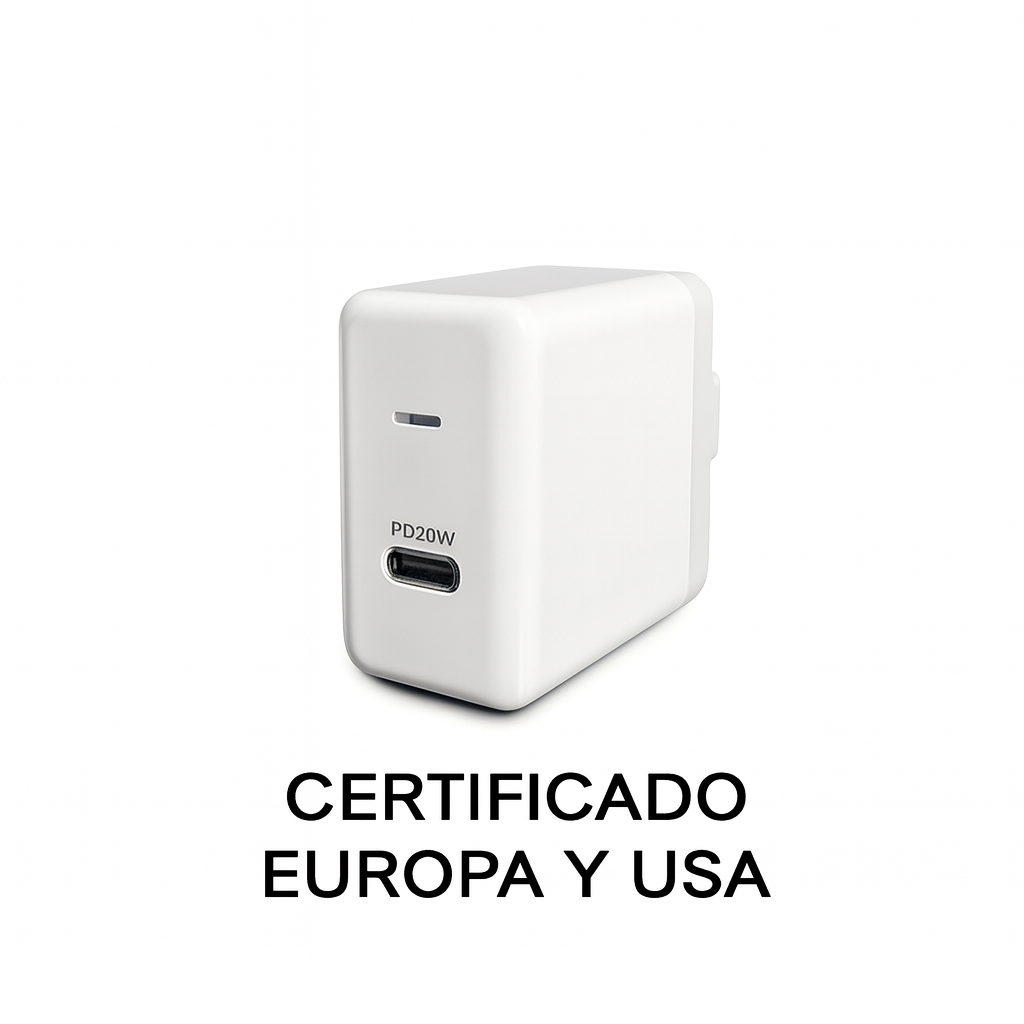

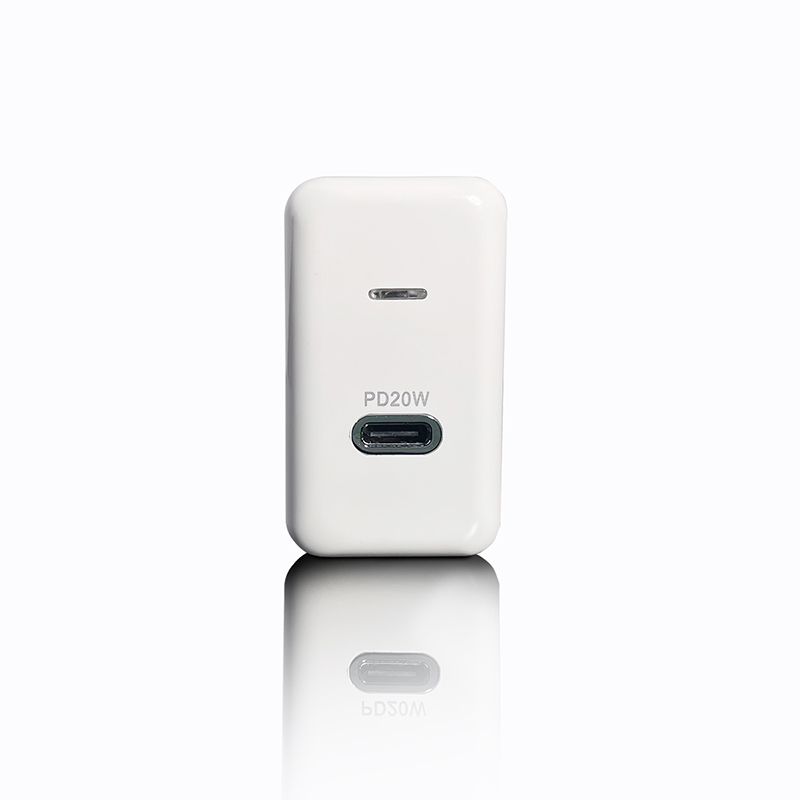

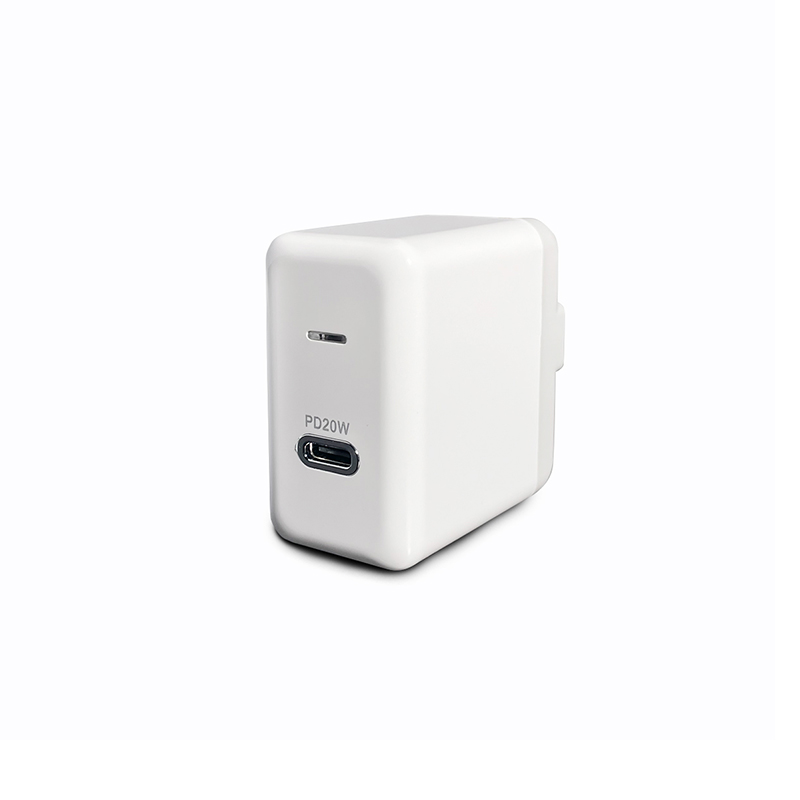

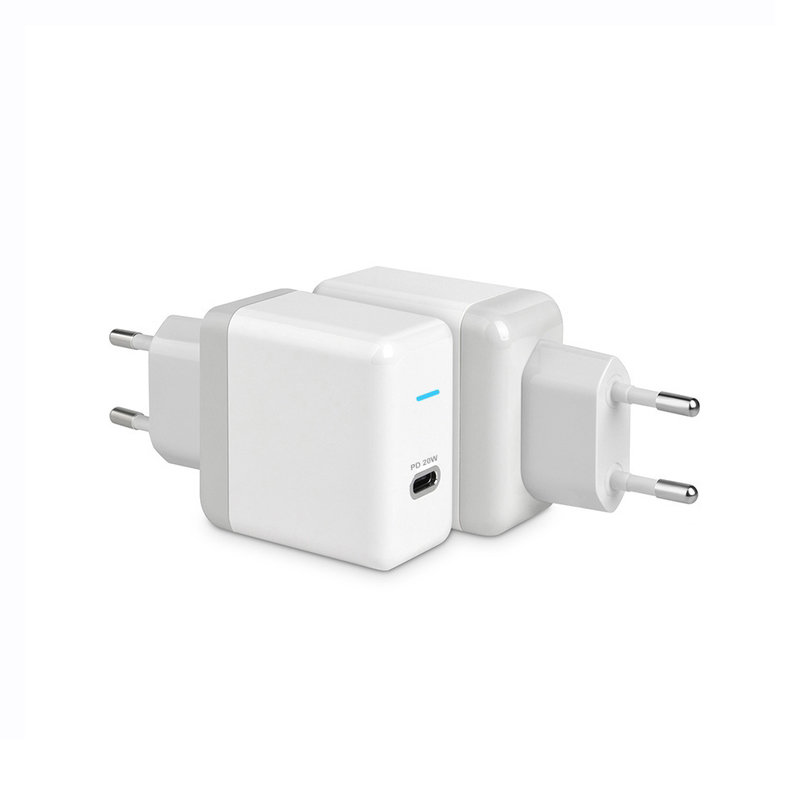

| Model | SZ-20W-PQ |
| Input | Voltage Range | 90 ～ 264 VAC |
| Frequency Range | 47 ～ 63 Hz |
| Efficiency | Efficiency Level VI |
| AC Current | |
| Cold start：≤30A@115Vac；≤50A@230Vac |
| Leakage Current | IP～OP Leakage current：≤0.25mA，Touch current＜0.1mA@264Vac |
| Output | Rated Voltage&Rated Current | USB-C PD3.0 Output: 5V 3A; 9V 2.22A; 12V 1.67A |
| Rated Power | 20W Max |
| Ripple & Noise | ≤50mVpk |
| Voltage Tolerance | 5V,9V,12V:±5%;15V,20V:±3% |
| Line Regulation | ≤0.1% |
| Load Regulation | ≤5%@5V；≤3%@ Other than 5V output voltage； |
| Setup,Rise,Hold Up Time | 230Vac Full load：≤1S,≤1S,≥50mS |
| Protection | Over load | 110% ～ 130%@Rated power. Constant power protection mode，recovers automatically after fault condition is removed. |
| Over Voltage | 5VDC：6.5V;9VDC:10.8V;12VDC:14.4V;15VDC:18V;20VDC:24V.Cut-off protection mode,recovers after power failure. |
| Over Current | 110% ～ 130%@Rated power. Constant power protection mode，recovers automatically after fault condition is removed. |
| Short Circuit | No damage,Hiccup mode, recovers automatically after fault condition is removed. |
| Environment | Working Temp.,Humidity | Temp.：-10℃ ～ +40℃ ；Humidity：10% ～ 95% RH, Non-condensing |
| Storage Temp.,Humidity | Temp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing |
| Temp.Coefficient | ≤0.03V/℃（0℃ ～ +45℃） |
| Vibration | 10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes |
| Safety & EMC | Safety Standards | UL/CB/CE：EN/IEC 62368-1;EN/IEC 60950-1 |
| Withstand Voltage | IP～OP: ≥3KVac |
| Isolation Resistance | IP～OP: ≥100MΩ@500Vdc,25℃,70% RH |
| EMC | FCC/Part 15 ;EN55032、EN55035；EN/IEC61000 |
| Others | Product Size | 50.6*49.5*29mm |
| Certificate | UL,CB,CE,FCC,CEC,ERP |
